SN Series Plummer Block Table

SN Series Plummer Block Table

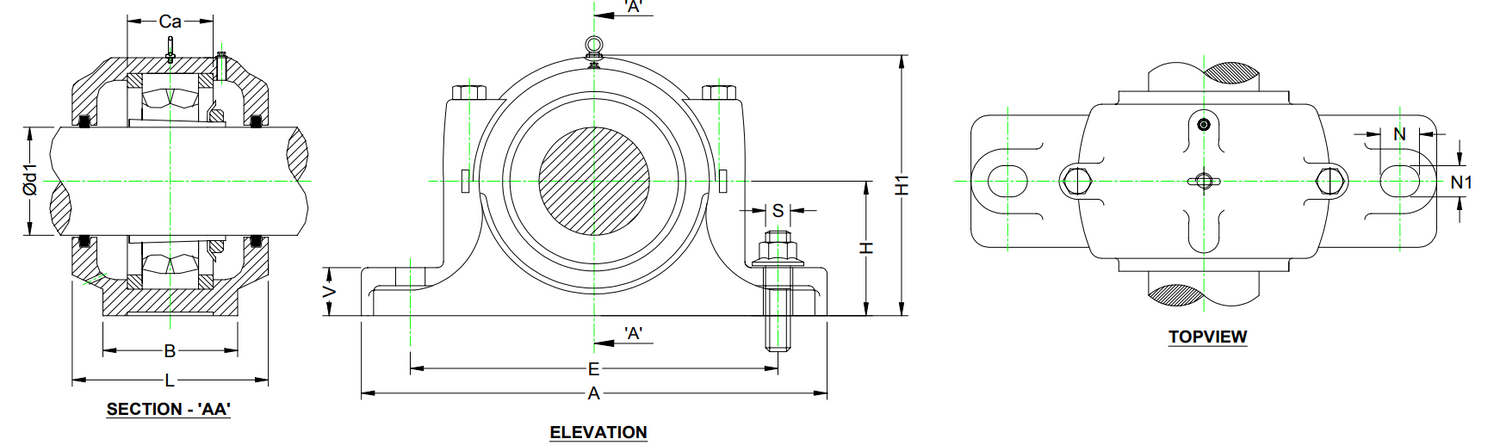

Designation
 Shaft Diameter (mm)
 Shaft Diameter (inch)
 L
 H
 A
 B
 E
 V
 S
 Ca
 N
 N1
 Bearing with Adapter Sleeve
 Locating Rings
 Felt Strip No.
SN 505 20 3/4 67 40 165 46 130 19 12 25 20 15 1205 K + H 205, 2205 K + H 305 5/52, 7/52 FS 110
SN 506 25 1 77 50 185 52 150 22 12 30 20 15 1206 K + H 206, 2206 K + H 306 7/62, 10/62 FS 190
SN 507 30 1-1/8 82 50 185 52 150 22 12 33 20 15 1207 K + H 207, 2207 K + H 307, 22207 CK+ H 307 8/72, 10/72, 10/72 FS 190
SN 508 35 1-1/4 85 60 205 60 170 25 12 34 20 15 1208 K + H 208, 2208 K + H 308, 22208 CK+ H 308 8/80, 11/80, 11/80 FS 190
SN 509 40 1-1/2 85 60 205 60 170 25 12 31 20 15 1209 K + H 209, 2209 K + H 309, 22209 CK+ H 309 6/85, 8/85, 8/85 FS 190
SN 510 45 1-3/4 90 60 205 60 170 25 12 33 20 15 1210 K + H 210, 2210 K + H 310, 22210 CK+ H 310 6.5/90, 10/90, 10/90 FS 190
SN 511 50 2 95 70 255 70 210 28 16 33 23 18 1211 K + H 211, 2211 K + H 311, 22211 CK+ H 311 6/100, 8/100, 8/100 FS 260
SN 512 55 2-1/8 105 70 255 70 210 30 16 38 23 18 1212 K + H 212, 2212 K + H 312, 22212 CK+ H 312 8/110, 10/110, 10/110 FS 260
SN 513 60 2-1/4 110 80 275 80 230 30 16 43 23 18 1213 K + H 213, 2213 K + H 313, 22213 CK+ H 313 10/120, 12/120, 12/120 FS 260
SN 515 65 2-1/2 115 80 280 80 230 30 16 41 23 18 1215 K + H 215, 2215 K + H 315, 22215 CK+ H 315 8/130, 10/130, 10/130 FS 260
SN 516 70 2-3/4 120 95 315 90 260 32 20 43 27 22 1216 K + H 216, 2216 K + H 316, 22216 CK+ H 316 8.5/140, 10/140, 10/140 FS 330
SN 517 75 3 125 95 320 90 260 32 20 46 27 22 1217 K + H 217, 2217 K + H 317, 22217 CK+ H 317 9/150, 10/150, 10/150 FS 330
SN 518 80 --- 145 100 345 100 290 35 20 62 27 22 1218 K + H 218, 2218 K + H 318, 22218 CK + H 318, 23218 CK + H 2318 16.2/160, 11.2/160, 11.2/160, 10/160 FS 330
SN 519 85 3-1/4 145 112 345 100 290 35 20 53 27 22 1219 K + H 219, 2219 K + H 319, 22219 CK + H 319 10.5/170, 10/170, 10/170 FS 330
SN 520 90 3-1/2 160 112 380 110 320 40 24 70 32 26 1220 K + H 220, 2220 K + H 320, 22220 CK+ H 320, 23220 CK+ H 2320 18/180, 12/180, 12/180, 9.7/180 FS 370
SN 522 100 4 175 125 410 120 350 45 24 80 32 26 1222 K + H 222, 2222 K + H 322, 22222 CK+ H 322, 23222 CK+ H 2322 21/200, 13.5/200, 13.5/200, 10/200 FS 460
SN 524 110 4-1/4 185 140 410 120 350 45 24 86 32 26 22224 CK+ H 3124, 23224 CK+ H 2324 14/215, 10/215 FS 460
SN 526 115 4-1/2 190 150 445 130 380 50 24 90 35 28 22226 CK+ H 3126, 23226 CK+ H 2326 13/230, 10/230 FS 460
SN 528 125 5 205 150 500 150 420 50 30 98 42 35 22228 CK+ H 3128, 23228 CK+ H 2328 15/250, 10/250 FS 510
SN 530 135 5-1/4 220 160 530 160 450 60 30 106 42 35 22230 CK+ H 3130, 23230 CK+ H 2330 16.5/270, 10/270 FS 510
SN 532 140 5-1/2 235 170 550 160 470 60 30 114 42 35 22232 CK+ H 3132, 23232 CK+ H 2332 17/290, 10/290 FS 680
SN 534 150 6 235 180 620 170 520 65 30 120 42 35 22234 CK+ H 3134, 23234 CK+ H 2334 17/310, 10/310 FS 680
SN 536 160 6-1/2 245 190 650 180 560 65 30 122 42 35 22236 CK+ H 3136, 23236 CK+ H 2336 18/320, 10/320 FS 680
SN 538 170 6-3/4 255 200 680 190 580 70 36 130 50 42 22238 CK+ H 3138, 23238 CK+ H 2338 19/340, 10/340 FS 680
SN 605 20 3/4 80 50 185 52 150 22 12 34 20 15 1305 K + H 305, 2305 K + H 2305 8.5/62, 10/62 FS 110
SN 606 25 1 82 50 185 52 150 22 12 37 20 15 1306 K + H 306, 2306 K + H 2306 9/72, 10/72 FS 190
SN 607 30 1-1/8 90 60 205 60 170 25 12 41 20 15 1307 K + H 307, 21307 K + H 307, 2307 K + H 2307 10/80, 10/80, 10/80 FS 190
SN 608 35 1-1/4 95 60 205 60 170 25 12 43 20 15 1308 K + H 308, 21308 K + H 308, 2308 K + H 2308, 22308 CK + H 2308 10/90, 10/90, 10/90, 10/90 FS 190
SN 609 40 1-1/2 105 70 255 70 210 28 16 46 23 18 1309 K + H 309, 21309 K + H 309, 2309 K + H 2309, 22309 CK + H 2309 10.5/100, 10.5/100, 10/100, 10/100 FS 190
SN 610 45 1-3/4 115 70 255 70 210 30 16 50 23 18 1310 K + H 310, 21310 K + H 310, 2310 K + H 2310, 22310 CK + H 2310 11.5/110, 11.5/110, 10/110, 10/110 FS 190
SN 611 50 2 120 80 275 80 230 30 16 53 23 18 1311 K + H 311, 21311 K + H 311, 2311 K + H 2311, 22311 CK + H 2311 12/120, 12/120, 10/120, 10/120 FS 260
SN 612 55 2-1/8 125 80 280 80 230 30 16 56 23 18 1312 K + H 312, 21312 K + H 312, 2312 K + H 2312, 22312 CK + H 2312 12.5/130, 12.5/130, 10/130, 10/130 FS 260
SN 613 60 2-1/4 130 95 315 90 260 32 20 58 27 22 1313 K + H 313, 21313 K + H 313, 2313 K + H 2313, 22313 CK + H 2313 12.5/140, 12.5/140, 10/140, 10/140 FS 260
SN 614 65 2-1/2 140 100 345 100 290 35 20 65 27 22 1314 K + H 314, 21314 K + H 314, 2314 K + H 2314, 22314 CK + AHX 2314 13/150, 13/150, 10/150, 10/150 FS 260
SN 615 70 2-3/4 145 112 345 100 290 35 20 68 27 22 1315 K + H 315, 21315 K + H 315, 2315 K + H 2315, 22315 CK + H 2315 14/160, 14/160, 10/160, 10/160 FS 330
SN 616 75 3 155 112 380 110 320 40 24 70 32 26 1317 K + H 317, 21317 K + H 317, 2317 K + H 2317, 22317 CK + H 2317 14.5/180, 14.5/180, 10/180, 10/180 FS 330
SN 617 80 3-3/16 160 112 380 110 320 40 24 74 32 26 1318 K + H 318, 21318 K + H 318, 2318 K + H 2318, 22318 CK + H 2318 15.5/190, 15.5/190, 10/190, 10/190 FS 330
SN 618 85 3-3/8 170 125 410 120 350 45 24 77 32 26 1319 K + H 319, 21319 K + H 319, 2319 K + H 2319, 22319 CK + H 2319 16/200, 16/200, 10/200, 10/200 FS 330
SN 620 90 3-1/2 175 140 410 120 350 45 24 83 32 26 1320 K + H 320, 21320 K + H 320, 2320 K + H 2320, 22320 CK + H 2320 18/215, 18/215, 10/215, 10/215 FS 370
SN 622 100 4 190 150 450 130 390 50 24 90 35 28 21322 K + H 322, 22322 CK + H 2322 20/240, 10/240 FS 370
SN 624 110 4-1/4 200 160 530 160 450 60 30 96 42 35 20324 K+ H 3124, 22324 CK+ H 2324 20.5/260, 10/260 FS 460
SN 626 115 4-1/2 210 170 550 160 470 60 30 103 42 35 20326 K+ H 3126, 22326 CK+ H 2326 22.5/280, 10/280 FS 460
SN 628 125 5 235 180 620 170 520 65 30 112 42 35 20328 K+ H 3128, 22328 CK+ H 2328 25/300, 10/300 FS 510
SN 630 135 5-1/4 245 190 650 180 560 65 30 118 42 35 20330 K+ H 3130, 22330 CK+ H 2330 26.5/320, 10/320 FS 510
SN 632 140 5-1/2 255 200 680 190 580 70 36 124 50 42 20332 K+ H 3132, 22332 CK+ H 2332 28/340, 10/340 FS 680
SN 634 150 6 235 180 620 170 520 65 30 120 42 35 22234 CK+ H 3134, 23234 CK+ H 2334 17/310, 10/310 FS 680
SN 636 160 6-1/2 245 190 650 180 560 65 30 122 42 35 22236 CK+ H 3136, 23236 CK+ H 2336 18/320, 10/320 FS 680
SN 638 170 6-3/4 255 200 680 190 580 70 36 130 50 42 22238 CK+ H 3138, 23238 CK+ H 2338 19/340, 10/340 FS 680
SN 305 25 30 80 50 185 52 150 22 12 34 20 15 1305, 2305 8.5/62, 10/62 FS 190
SN 306 30 35 82 50 185 52 150 22 12 37 20 15 1306, 2306 9/72, 10/72 FS 190
SN 307 35 45 90 60 205 60 170 25 12 41 20 15 1307, 21307, 2307 C 10/80, 10/80, 10/80 FS 190
SN 308 40 50 95 60 205 60 170 25 12 43 20 15 1308, 21308, 2308, 22308 C 10/90, 10/90, 10/90, 10/90 FS 260
SN 309 45 55 105 70 255 70 210 28 16 46 23 18 1309, 21309, 2309, 22309 C 10.5/100, 10.5/100, 10/100, 10/100 FS 260
SN 310 50 60 115 70 255 70 210 30 16 50 23 18 1310, 21310, 2310, 22310C 11.5/110, 11.5/110, 10/110, 10/110 FS 260
SN 311 55 65 120 80 275 80 230 30 16 53 23 18 1311, 21311, 2311, 22311 C 12/120, 12/120, 10/120, 10/120 FS 260
SN 312 60 70 125 80 280 80 230 30 16 56 23 18 1312, 21312, 2312, 22312 C 12.5/130, 12.5/130, 10/130, 10/130 FS 330
SN 313 65 75 130 95 315 90 260 32 20 58 27 22 1313, 21313, 2313, 22313 C 12.5/140, 12.5/140, 10/140, 10/140 FS 330
SN 314 70 80 130 95 320 90 260 32 20 61 27 22 1314, 21314, 2314, 22314 C 13/150, 13/150, 10/150, 10/150 FS 330
SN 332 160 180 255 200 680 190 580 70 36 124 50 42 20332, 22332 C 28/340, 10/340 FS 680
