Tecmo 0.5 HP Monoset Pump 40x40 mm (1.5") | 240V Single Phase | ISI IS 9079 | High Discharge 9,700 LPH
Tecmo 0.5 HP Monoset Pump 40x40 mm (1.5") | 240V Single Phase | ISI IS 9079 | High Discharge 9,700 LPH
Regular price
₹ 7,000
Regular price
Sale price
₹ 7,000
Unit price
per
Taxes included.
Shipping calculated at checkout.
Brand:
Monottex Industries
Product Category: Watering & Irrigation
Product Type: Pump
SKU: 15427918725302
Product Weight (Approx): 18.0 kg
| Winding | Copper |

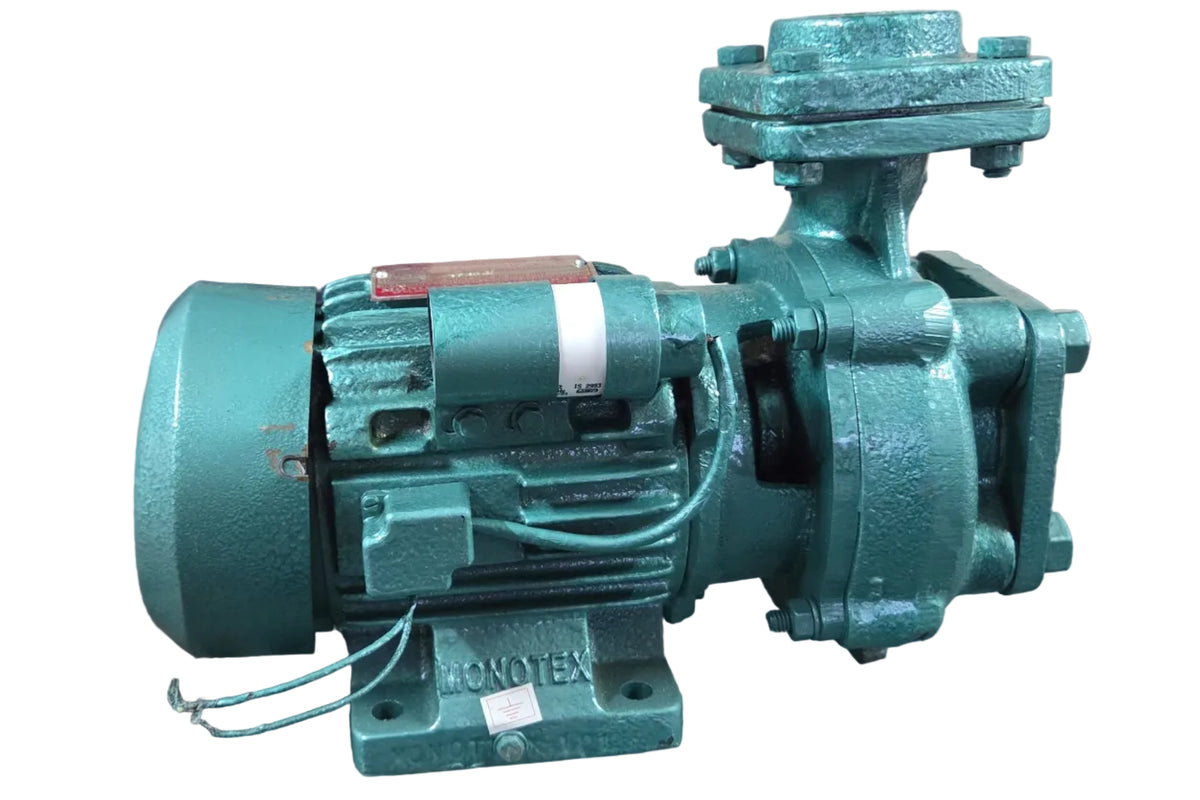

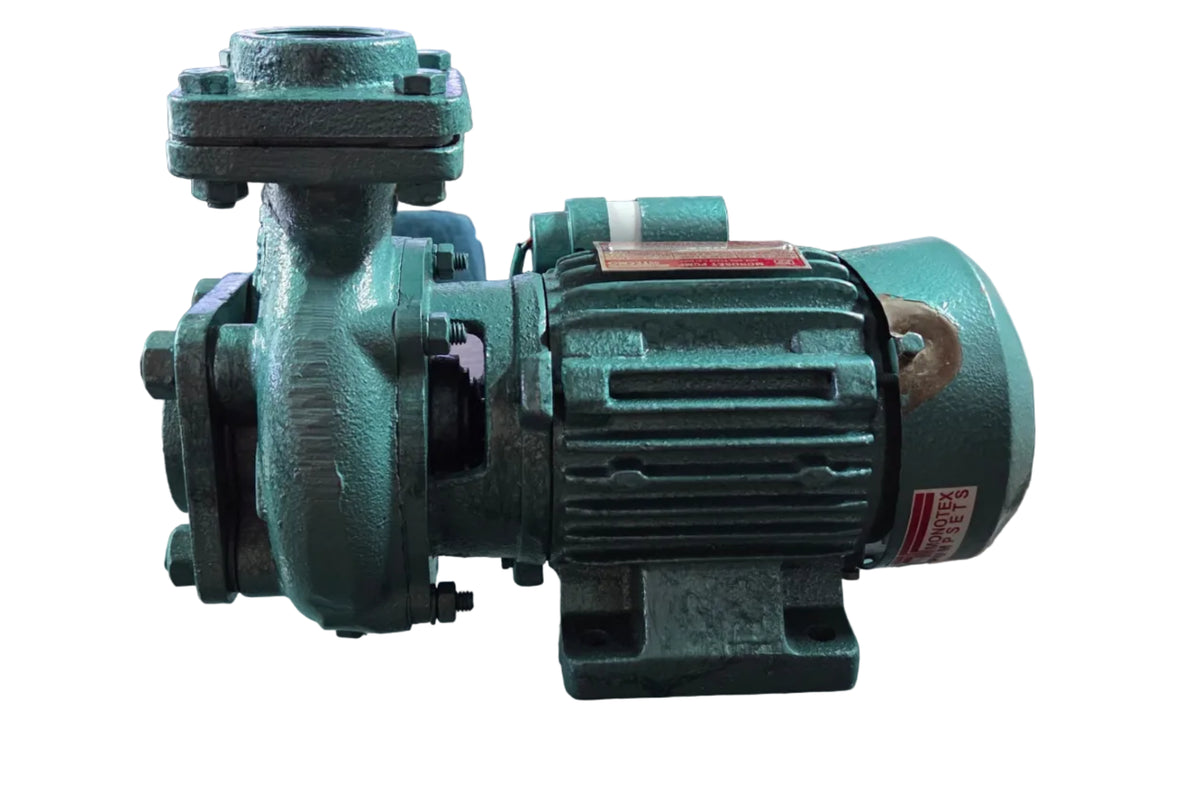

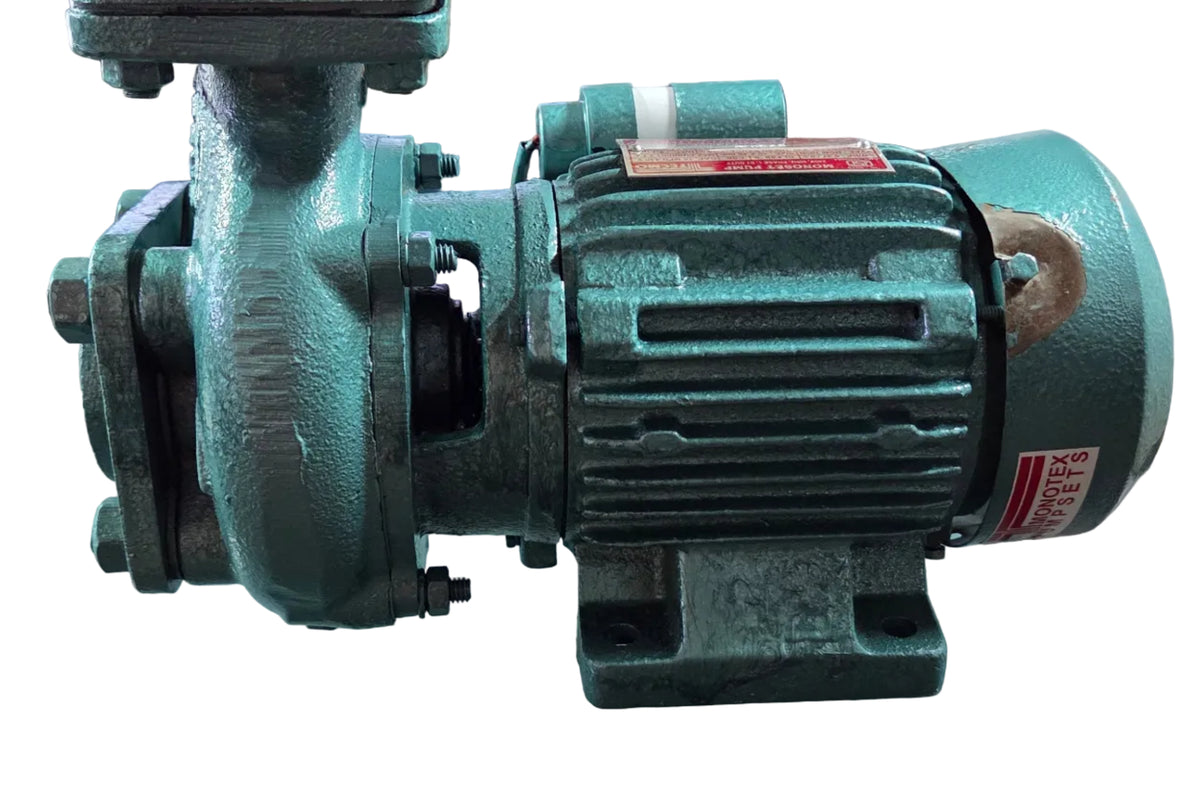

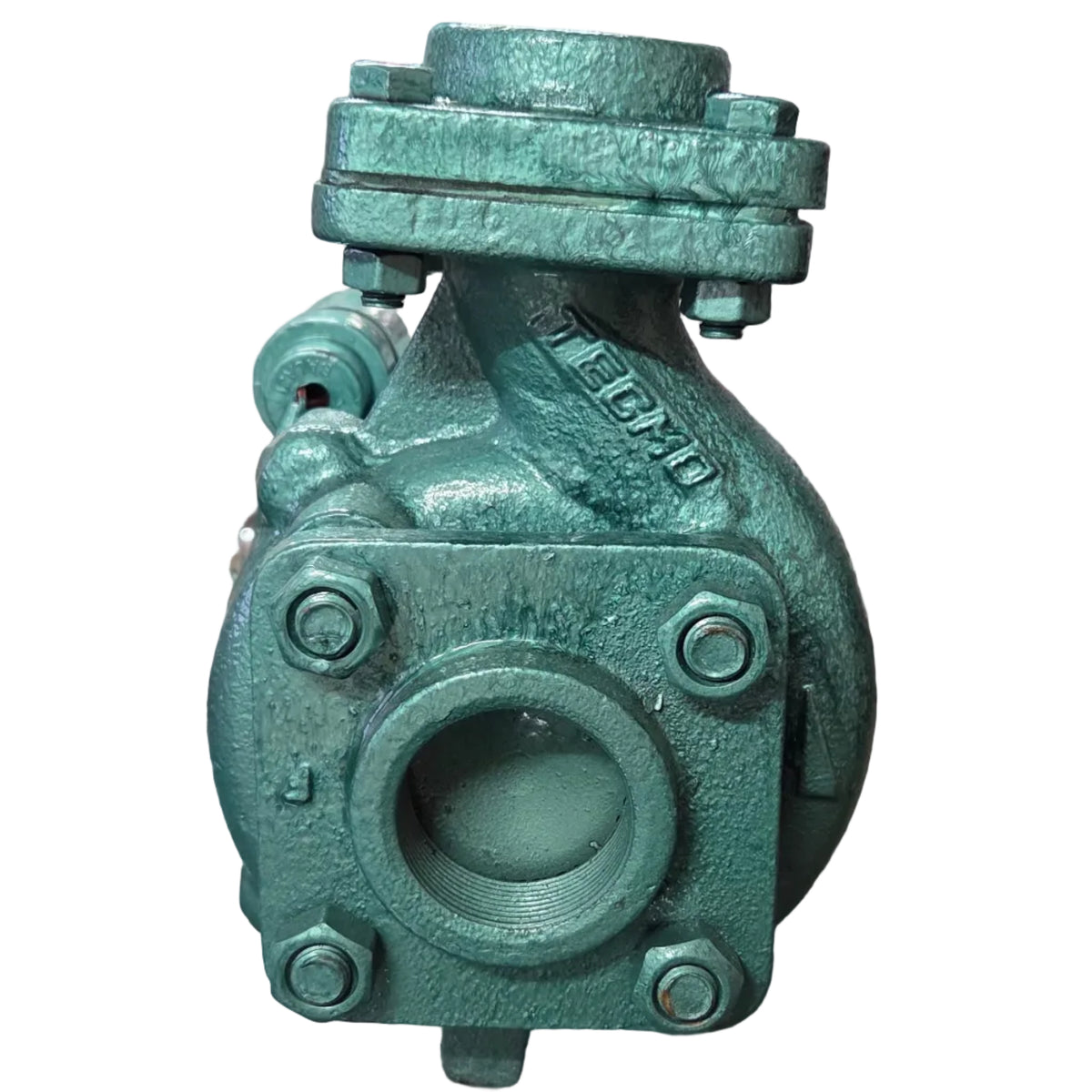

Tecmo 0.5 HP Monoset Pump (40x40 mm, Single Phase) is a rugged cast-iron pump built for high water flow at low head. It's ideal for garden irrigation, sump-to-tank transfer, nurseries and farm use.
Model HCM 106N delivers up to 2.7 litres per second (approx. 9,700 LPH) on a 240V single-phase supply. The capacitor start-run motor has Class B insulation and is rated for continuous S1 duty, so it handles long running hours with ease. ISI certified under IS 9079.

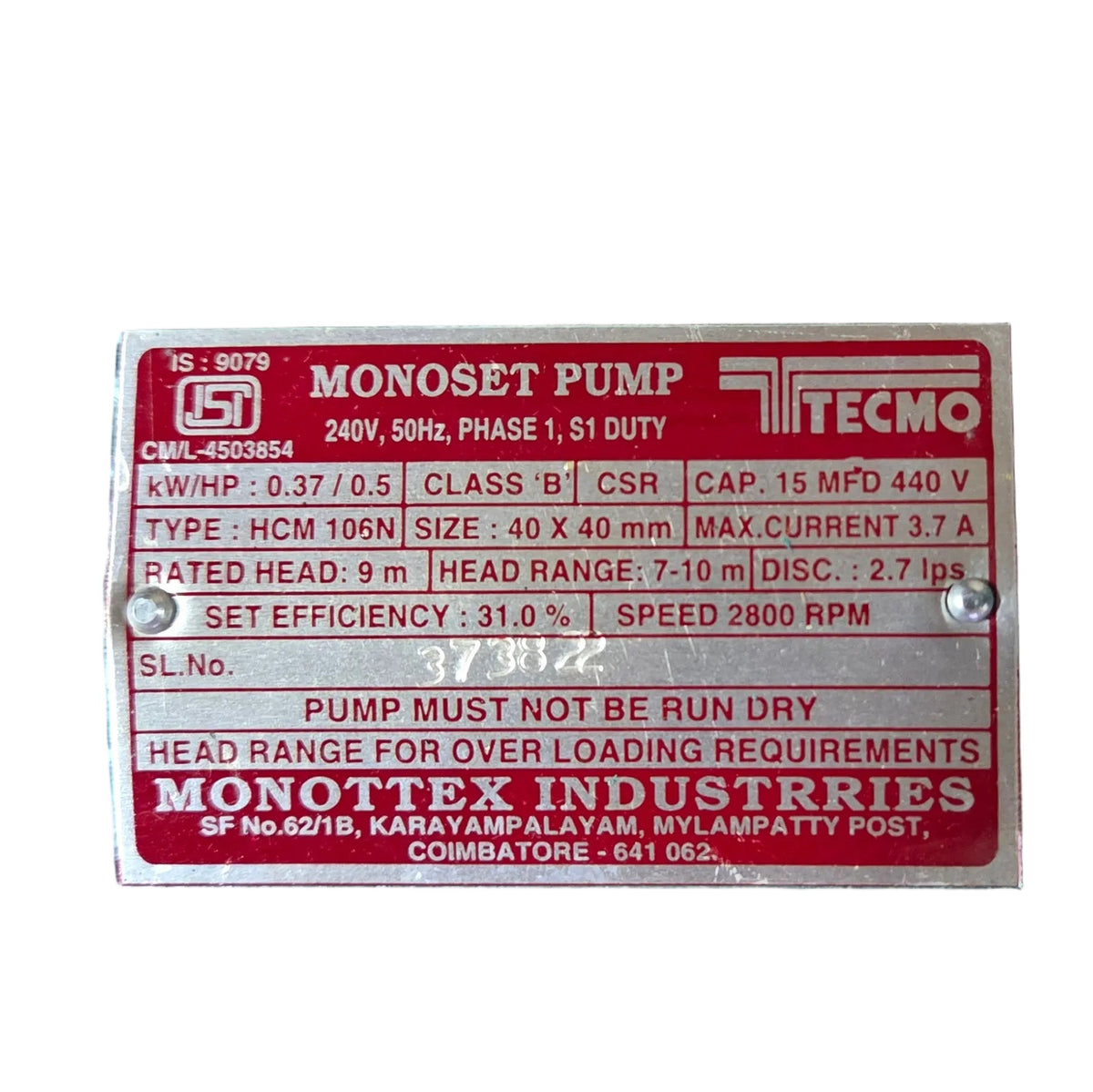

Technical Specifications
| Brand | Tecmo |
| Model / Type | HCM 106N |
| Pump Type | Monoset Centrifugal Pump |
| Power | 0.37 kW / 0.5 HP |
| Power Supply | 240V, 50 Hz, Single Phase |
| Pipe Size (Suction x Delivery) | 40 x 40 mm (1.5" x 1.5") |
| Rated Head | 9 m |
| Head Range | 7 – 10 m |
| Discharge | 2.7 LPS (approx. 9,720 LPH) |
| Speed | 2800 RPM |
| Max Current | 3.7 A |
| Capacitor | 15 MFD, 440V |
| Motor Type | Capacitor Start Run (CSR) |
| Insulation Class | Class B |
| Duty | S1 (Continuous) |
| Set Efficiency | 31% |
| Certification | ISI – IS 9079 |
| Manufacturer | Monottex Industries, Coimbatore |
Order On
WhatsApp
Key Features
Key Features
- High discharge: 2.7 LPS for fast water transfer
- Continuous duty (S1): built for long running hours
- Heavy cast-iron body: durable, with a finned cool-running motor
- Capacitor start-run (CSR): smooth, reliable starting
- ISI marked: IS 9079, CM/L-4503854
Usage & Applications
Usage & Applications
- Garden and lawn irrigation
- Farm and nursery watering
- Sump, tank and pond water transfer
- Low-head, high-flow applications
Important (Read Before Use)
Important (Read Before Use)
Important
- Do not run the pump dry. Fill the pump with water (prime) before starting.
- Use within the 7–10 m head range to avoid motor overloading.
- Install with proper earthing and a suitable starter/MCB.
